Material & Finishes :
M. O. C. :
a. Cable Gland is manufactured in Brass(Standard).
b. Alternative material - Stainless Steel / Aluminium.
Sealing Ring : Neoprene / Nitrile
Thread :
a. Glands are supplied with B.S.C. Thread (ET) as Standard.
b. Alternetive thread forms available are - NPT / PG / BSP / MM etc.
Finish :
a. Nickel Plated (Standard).
b. Alternetive Plating - Tin / zink / Chrome.
Protection Class : IP 66 IEC 60529
Ref. Standard : IS / IEC 60079:1:2007, IS / IEC 60079:0:2004,
Specifications :

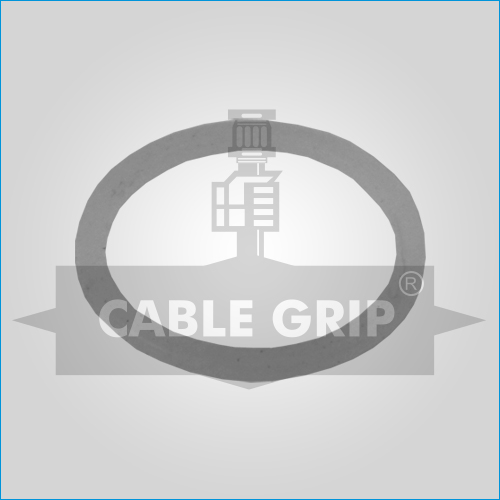

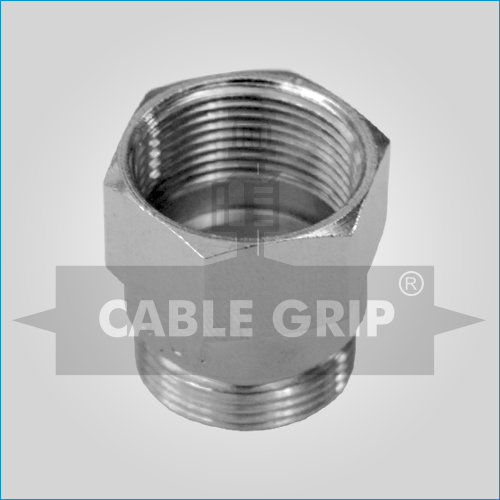

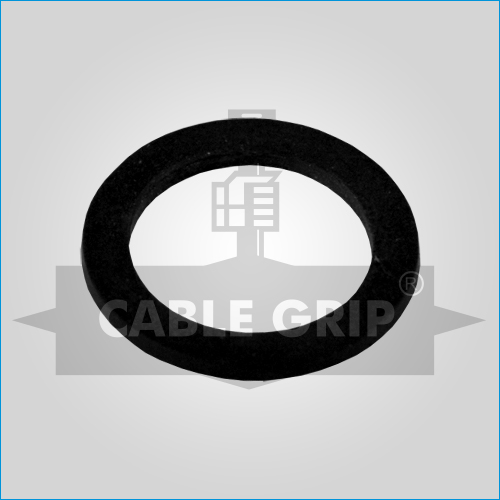

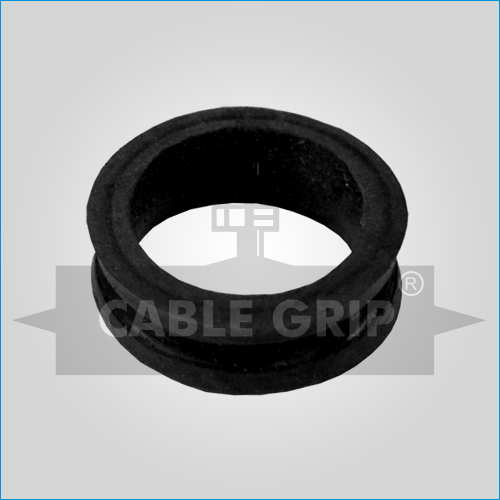

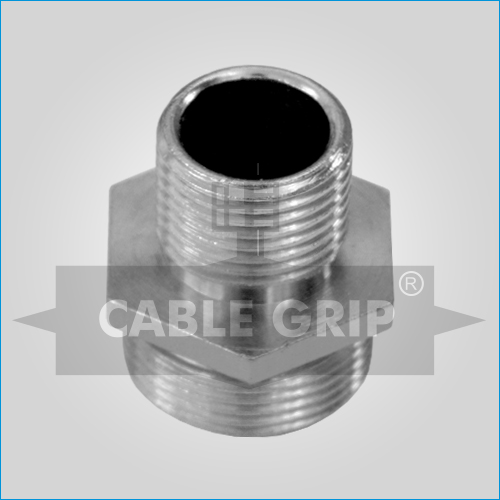

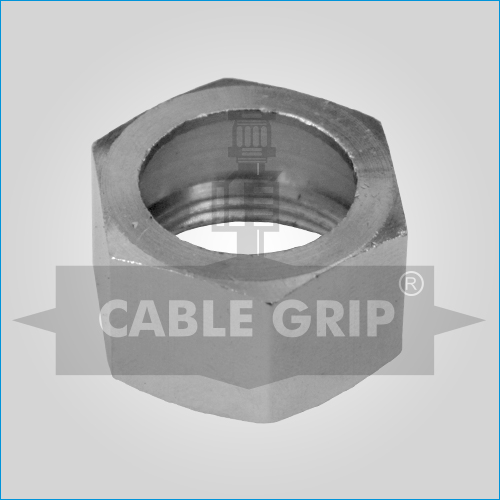

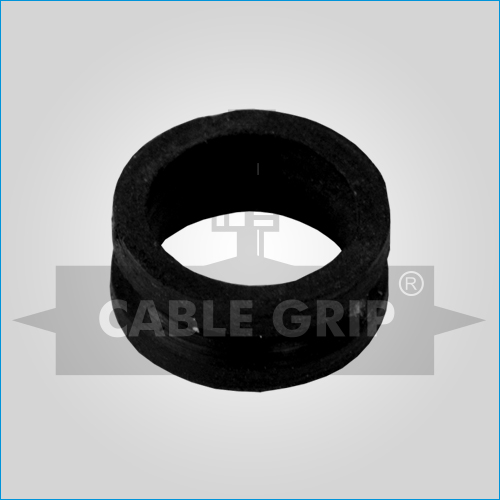

Gland consist of 1. Lock Nut, 2. Washer, 3. Armour Clamping Nut, 4. Neoprene Inner Ring, 5. Gland Body, 6. Neoprene Outer Ring, 7. Skid Washer & 8. Outer Seal Nut, All Metal Parts are made of Brass accurately machined for ease of assembly.
Accessories :
Shrouds and Earth tags are supplied separately and should be spacified when ordering the gland.
Fitting Sequence :
- Pass item 8, 7, 6, 5, 4 & 3 respectively over cable.
- Engage item 5 and 3 and tighten up.
- Engage item 8 and 5 and tighten up.
- Screw item 3, 2 into apparatus (Secure with item 1 if plain hole entry).
